Corrugated pipe stop valve

Dateline:2014-11-30    Hits:

Product type: WJ45H

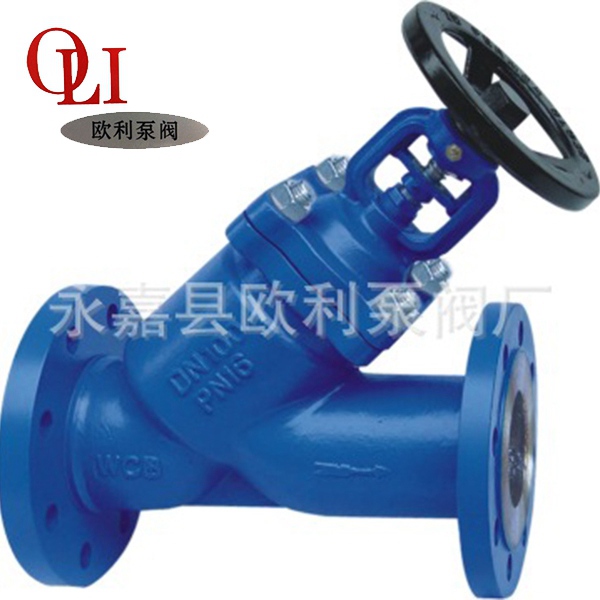

Product Name: DC BELLOWS GLOBE VALVE (Y type corrugated pipe stop valve)

Nominal pressure: 1.6-4.0Mpa

Shell material: steel, stainless steel (304, 316, 316L);

The use of medium: water, steam, oil etc..

Y shaped BELLOWS GLOBE VALVE the use of Germany advanced technologystandards for manufacturing, which is the key component of metal corrugated pipe,forming a metal barrier between the fluid medium and air, to ensure that the valve stem zero leakage.

Y type corrugated pipe stop valve main structure characteristics:

1 products reasonable structure, reliable sealing, excellent performance and beautiful shape;

The 2 sealing surface surfacing Co base hard alloy, wear resistance, corrosion resistance, anti friction performance, long service life;

The cut-off valve stem the tempering and surface nitriding process of 3.Y typecorrugated pipe has good corrosion resistance and friction performance;

4.Y type corrugated pipe stop valve double seal more reliable performance;

5.Y shaped bellows globe valve valve rod lifting position indication, more intuitive;

The 6 part material, flanges and butt number size according to the actual conditions or user requirements of reasonable matching, to meet the needs of various projects;

7 ergonomic design handwheel, longer service life, easy and convenient operation,higher safety and reliability;
